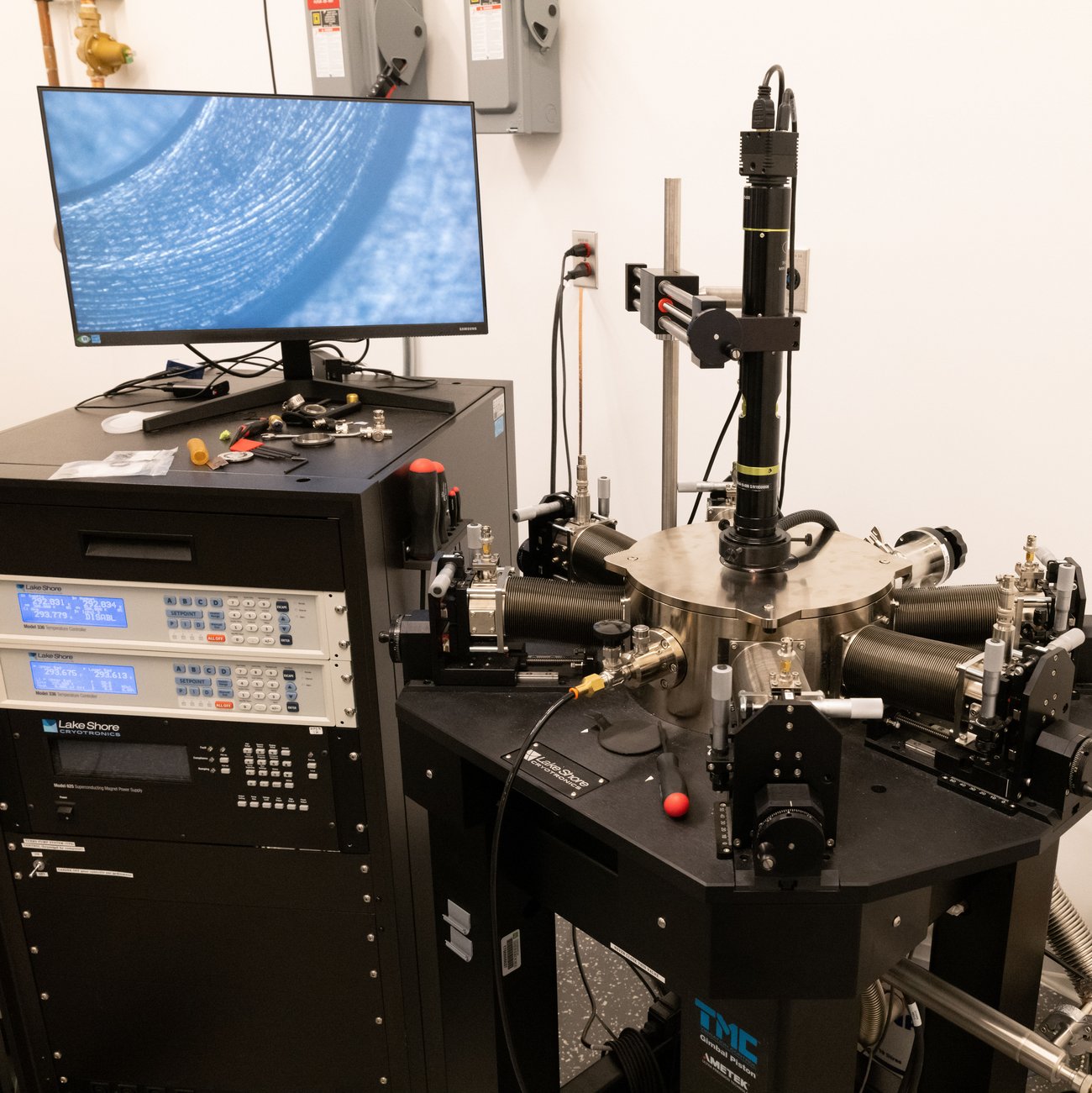

Cryogenic prob station - Prob station
![[Translate to English:] Station cryogénique de mesures sous pointes - Station sous pointes](/iq/fileadmin/_processed_/a/5/csm_2022-10-31_FABLAB_IQ_mb_1020976_76e3d5ed3f.jpg)
| Model | CPX-VF |
|---|---|
| Manufacturer | Lake Shore Cryotronics |
| Usage name | Prob station |
| Localisation | D9-0007 |
| Technical ressource(s) | Bobby Rivard Stéphane Morin |
| Types of analysis | Electrical measurements (resistance, Hall effect, etc.) |
| Quantitatve, semi-quantitative,qualitative | Quantitative |
| Sample size (mm) | Min |
| Max | |
| Temperature (K) | Min |
| Max | |
| Magnetic field (T) | Min |
| Max | |
| DC or microwave measurements? | DC and microwave measurements |
| Time required to cool down sample | 2 hours |
| Specific characteristics | Equipment functional at cryogenic (using liquid helium) and non-cryogenic temperatures 6 low-frequency probes available (DC - 100 MHz) - 10 μm DC probes (other sizes available) High-frequency measurements possible: 4 probes can be transformed into high-frequency probes (up to 40GHz) Can be used with a B1500A semiconductor device analyzer (Keysight) including 4 SMUs, a waveform generator, a pulse generator and a CMU |
